Product Description
Purewash Hotbox SE 105kW-250 (12v)
- Advanced and reliable controlpanel
- Integrated filtration system
- Integrated flame monitoring
- Extra compact design
- Recommended up to 25 l/min.
- Max pressure: 250 Bar
- Min pressure: 40 Bar
The most compact hot box solution for you who want hot water for your high pressure washer. This hotbox is suitable for all kinds of professional cleaning up tasks that require stable high-pressure cleaning with hot water. Can be connected to small as well as large high-pressure systems of 100-250 bar and between 15-30 l/min.
Purewash Hotbox stands out from the market's other Hotbox systems on several different points.
Purewash Hotbox - the system with extra functions!
One of the most striking features of the Purewash Hotbox units is the advanced and reliable control module used to operate this boiler. Experienced users in the industry will know that certain control modules can have challenges in relation to operational reliability. In a Purewash Hotbox unit, there is no skimp on quality, on the contrary, it is especially at this point that you can feel the difference, as the Purewash Hotbox unit does not use these cheap standard modules for control.
The safety functions are top notch, which is why the Purewash Hotbox comes as standard with a safety valve and a flame monitor which ensures that the diesel connection is disconnected if the flame goes out. This means that the boiler cannot be filled up with excess fuel in the event of a flame failure.
ATTENTION! When installing the Purewash Hotbox, we also recommend installing an undervoltage switch.
Technical data:
- Complete control panel with thermostat and hour counter
- Flow: 15-30 l/min. [Recommended up to 25 l/min.]
- Temperature: Max 110° *
- 105 kW / 90000 Kcal
- Fuel: Diesel B7
- Fuel consumption: 8.5 l/h
- Rated voltage 12V DC
- Full load current 28 Ah
- Thread Size: 3/8"
- Weight 55.0 kg
- Dimensions: W 42.5 cm x H 87.5 cm x D 53 cm

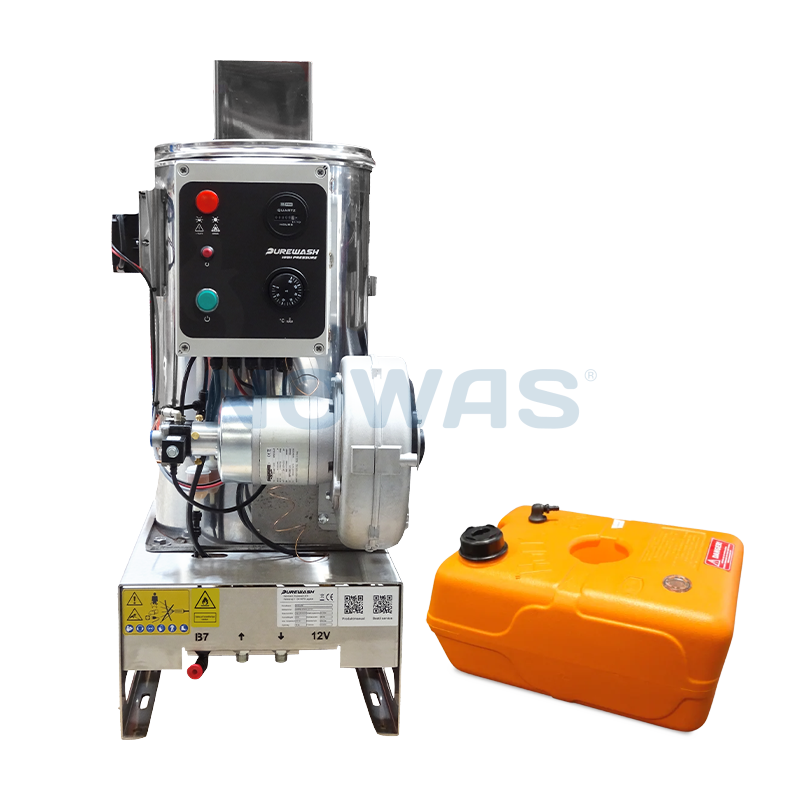

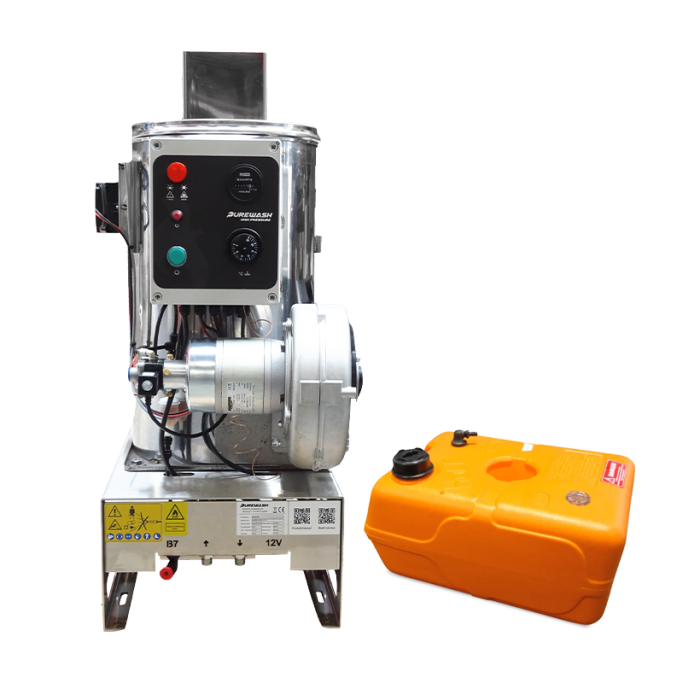

- Delivered incl. separate 30 l. fuel tank.
* Note: max. temperature and max. flow cannot be achieved simultaneously as flow rate affects performance. Feel free to contact us for further information.
